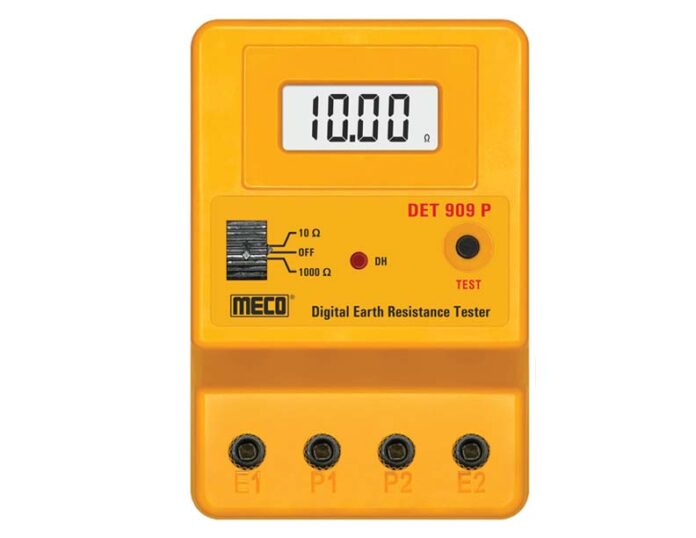

MECO New Digital Earth Resistance Tester (Model: DET 909 P) is designed for measurement of Earth Resistance of Earthing in the Electrical System. This instrument finds wide applications for testing Earthing of Installations in Power Industries, Telecommunication Networks & Electrical Traction Systems etc.
Key Features :
- 3½ Digit, 1999 Counts
- Earth Resistance Ranges : 10.00Ω & 1000Ω
- Excellent Robust Design
- Rechargeable Batteries can test number of operations up to 600 ON/OFF – Test
- Rugged Battery Holding Arrangement
- Batteries cannot be stolen from meter by any person
- Best Inbuilt SMPS Battery Charging Circuit, recharges in 3 – 4 hours
- DATA HOLD (DH) Facility
- 14mm LCD Display WITH BACKLIGHT
- Low Battery Indication
- LED Indication when, Battery Fully Charged
- Measurement Frequency 150Hz
- Light Weight & Portable
- Extremely Simple to Operate Connect – Press – Read
- Designed to Reject High Levels of Noise & Interference
- Designed to Generally Confirm to EN 61557
- Range Selection & Single Person Push Button Operation Switches
- Two Ranges for Earth Resistance Measurement
- Functions Icons on Display
- EN 61010-1 CAT III 100V
- Sturdy, Elegant & Compact Body
- Accessories: Carrying Case x 1, 1.2V ‘AA’ Rechargeable Batteries (Fitted in) x 8 Nos, 2 Pin Male-Female Wire for Battery Charging and Instruction Manual x 1, Carton x 1.
