Building envelope insulation plays a very important role in creating comfortable, energy-efficient, and durable buildings. The envelope includes walls, roofs, floors, windows, and doors for acting as a barrier inside and out.
Every element of the building envelope greatly contributes to the integrity and energy efficiency of a building.
Roofs protect buildings from weather agents like rain, snow, and extreme heat but, in addition, play a partial role in providing thermal insulation for buildings. Floors provide a solid base and support for interiors, thus helping in insulation and the conservation of energy. Windows provide natural light and natural ventilation, but for energy efficiency, they have to be tightly sealed. Ultimately, doors are entranceways that call for insulation and security to save on indoor comfort and avoid drafts.
All these elements combined give the building durability, comfort, and energy performance. Additional inclusion of insulation layers in the building will drastically enhance indoor environmental conditions while developing efficient energy use. The Insulation layers can be applied on the opaque surfaces like wall, ceiling, doors etc. The insulation regulates the heat flow, thus keeping the heating and cooling to a minimum, hence keeping the energy bills low. It also smoothens temperature fluctuations, diminishes drafts, and soundproofs, hence contributing to comfort. Good insulation also prevents moisture issues, such as condensation and mold, that can damage the structure of a building and degrade indoor air quality. It is for this reason that high-performance insulation will be key in attaining modern energy standards and maintaining sustainability in the longer term. In sum, it optimizes the performance, health, and sustainability of a building.
Climate Zone and Its Effect on Insulation
Energy codes divide the world map into climate zones considering temperature, humidity, among other parameters. The most relevant organizations in this matter are ASHRAE, IECC, NBC etc. An example of climate zone is given below.
This contributes to much variability in providing a comfortable living environment inside, depending on the climate zone: in colder zones, higher insulation levels are demanded, which means the requirement for greater heat retention inside and keeping it warm; in hotter zones, it equally requires insulation for reducing heat gain to minimize and moderate undesirably high interior temperatures. In addition, insulation should also address the issues of moisture control, excluding those regions that are in a humid area, so that other negative factors do not arise due to a build-up of condensation and mold. The type and amount of insulation used is such that it would consider the specific climatic conditions with a view of optimizing energy efficiency, comfort, and durability of the building.
The building envelope is the physical separator between the indoor and outdoor environment and includes opaque elements and fenestration systems. Opaque elements include walls, roofs, ground-level slabs, basement walls, and solid doors, while fenestration systems include windows, skylights, ventilators, and more-than-half-glazed doors. The envelope serves as a barrier that protects the interior and its occupants against weather. It thereby assists in keeping most of the extraneous sources of noise and air pollution at bay.

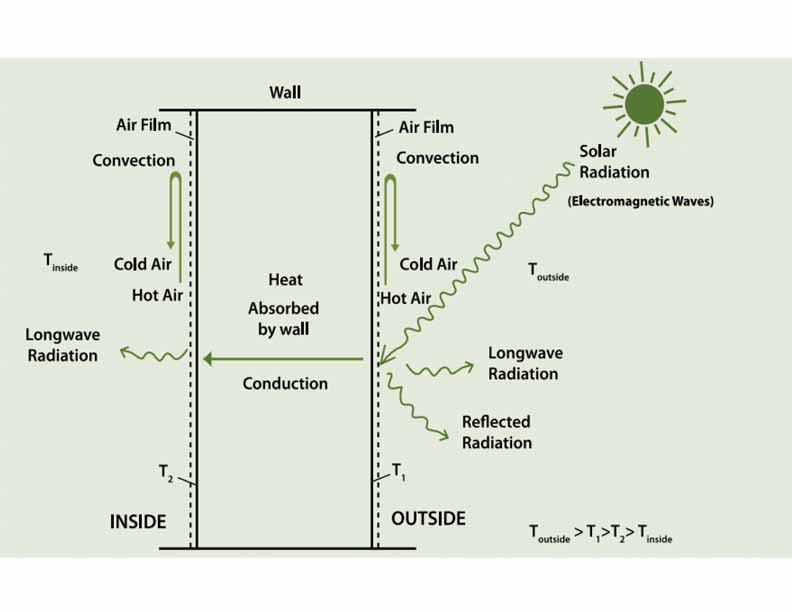

The process of heat transfer in buildings, through their walls, windows, and roofs, always takes place from where the temperature is higher to where it is lower by means of conduction, convection, and radiation. Conduction takes place if there is direct contact between particles inside a material or when materials are in physical contact. Convection transfers heat by moving fluids: air, gas, or liquid. Radiation is the transfer of heat energy through space without needing conduction by air or air movement.
The most common kinds of insulation materials — fiberglass, cellulose foam board, and spray foam — are easily available for a myriad of construction applications. Known to have rather inexpensive qualities, fiberglass insulation comes mostly in batt or roll forms and is readily available at any hardware store.
Cellulose insulation is environmentally friendly, and it is made from recycled paper products. This type of insulation provides good thermal resistance for checking and retention in thermal energy flow. Specialized suppliers are on the market. It has high insulation values for minimal thickness, making it suitable for confined areas in the form of rigid panels, which is foam board insulation, and can be sourced from major construction material suppliers.
Spray foam insulation is applied to an area where it expands, filling in all the holes to join everything into an airtight seal, becoming grossly effective in giving reductions in air leaks that improve energy efficiency. This can be obtained through professional services from insulation contractors in India. All these materials become very important in securing comfortable temperatures inside and in cutting energy expense in the typical house or building in India.
Performance Analysis of The Insulating Materials
The performance of the insulation material is based on the following parameters.
Thermal Resistance: The R-value of the insulation describes thermal resistance; the higher the R-value, the better it is at insulating. This is a very important factor to explain just how energy-efficient that building will be, since this rating defines how well the insulation will stop, or diminish, heat transfer
from the inside environment to the outside environment – or vice versa.
The importance of the R-value lies in its direct relationship to a huge impact on heating and cooling costs. High R-value insulation helps in keeping the inside temperature intact; thus, it lessens usage or the need for excessive heating during winters and excessive cooling during summers. Proper selection and installation at the right R-value – one that considers climatic factors of the region – can result in large energy savings and increased comfort level in a building.
Moisture Resistance: The two key properties of building materials are moisture resistance and vapour permeability, influencing the service life and performance of a building or structure. Moisture resistance describes the capability of the material to repel or act as a barrier to water penetration. This property enables a material to prevent water damage, mold growth, and structure deterioration.
On the other hand, vapour permeability is a measure of the ease with which water vapour passes through a material. While a high moisture resistance is desired to prevent water from entering, adequate vapour permeability is important to let entrapment of moisture out; otherwise, condensation will take its place and problems with mold and decay. These are balancing properties in building design: the ability to avoid moisture but breathe well to avoid accumulation within the structure.
Fire Resistance and Acoustic Properties: Insulation used in the building envelope is usually chosen on two primary considerations: fire resistance and acoustic properties. Fire-resistant insulation materials slow the development of flames and allow a building to hold its integrity, providing more time to vacate occupants out of the building in case of break out and also minimize potential damages. Materials such as mineral wool and some kinds of fiberglass are characterized by their outstanding fire-retardant properties.
Moreover, acoustic properties of insulation significantly improve indoor comfort due to its damping of external noise and minimising sound transfer between different areas in a building. Good soundproofing creates a much quieter environment and increases productivity, especially in city situations or multi-unit structures. Thus, high performance insulation that offers better fire-resistance and sound absorption in guaranteeing the safety and comfort of a building with regards to its overall performance is important.
A comparison of common building envelope insulation materials based on the previously mentioned aspects is provided in TABLE 1.
Comparison of the Properties of the Common Envelope Insulating Materials: The following insulating materials are very popular to use for envelope insulation the pros and cons are written in TABLE 2.
The selection of the appropriate building envelope insulation material will involve weighing pros against cons for each individual option. Fiberglass is cheap to acquire and has easy installation procedures, though it may have irritants and lower thermal resistance. Mineral wool performs better in fire and moisture repellence, but it is not as cost-effective. Polyurethane offers great thermal performance and versatility, but there is also its flammability and high initial costs that one must take into consideration. Ultimately, project needs, budget, and environmental impact are factors in making an educated decision for sustainable construction.
Environmental Impact of Insulating Materials
These insulating materials contribute to various influences on environmental impact from different phases of the life cycle. Performance can be tested by the researchers, taking into consideration production, transportation of materials, usage, and waste management.
Among the key results underlined is the importance of thermal conductivity and regional material choices. Optimization of insulation efficiency has a great effect on energy consumption and comfort level indoors. This helps to better understand these impacts and inform environmentally responsible decisions in building design and construction.
Building Codes and Standards
Different building codes and standards address building envelope insulation requirements as they relate to energy efficiency, safety, and comfort. The prescriptive requirements of the IECC include minimum R-values for walls, ceilings, and floors; maximum U-factors for windows and doors; and solar heat gain coefficients. The approaches to compliance include prescriptive, performance, and energy rating index.
ASHRAE 90.1 covers commercial buildings by providing minimum insulation quantities and taking a whole-systems approach with energy efficiency from HVAC to the building envelope. The International Building Codes like IBC and IRC highlights the insulation specification regarding the commercial and residential buildings respectively. Additionally, local building codes can be more specific depending on regional climate and other circumstances. These standards look to a building that is all about being energy-efficient, safe, and comfortable. An example of the code requirement is given in TABLE 3.
Innovative Insulation Solutions beyond Traditional Methods
Productive approaches include the use of green roofs and walls. Green roofs are formed by growing plant life on rooftops, providing natural insulation, reducing heat retention, and improving air quality. Green walls, popularly known as vertical gardens, can similarly be attached to exterior walls.
These constructions not only act as an additional insulating layer but also add to the aesthetic appeal of the building. Another approach involves improving insulation through reflective roofing and wall coatings.
Cool roofs employ reflective materials or coatings to reflect more sunlight and absorb less heat, which in turn can keep buildings cooler. Similarly, applying reflective coatings to exterior walls could bring down heat gain significantly, enhancing the overall energy efficiency of the building.
The other strategy involves increasing the structure’s thermal mass. There are efficient materials, like AAC (Autoclaved Aerated Concrete) blocks which are lightweight, precast building materials that offer very good thermal insulation. Prepared from a mix of cement, lime, sand, water, gypsum and aluminium.
AAC blocks have a porous structure with entrapped air providing most of the insulating value. The air pockets inside AAC blocks provide superior thermal insulation, reducing the need for additional insulation materials. In addition, AAC blocks have much lower weight than conventional concrete blocks. This will reduce the overall mass of the structure, hence making it easier to handle and put in place. In addition, they are highly fire-resistant since they are non-combustible and provide high levels of sound insulation due to their porous nature. Consequently, these features make the AAC block highly adaptable and efficient for modern construction techniques.
While both high thermal mass materials and AAC blocks are energy-efficient materials, they differ in their modes of operation. High thermal mass materials work to internally regulate temperature by absorbing and releasing heat slowly. On the other hand, AAC blocks act as very efficient thermal insulation by reducing the amount of heat that passes through a building envelope. Combining these materials can create a highly energy-efficient building that is comfortable, safe, and sustainable.
Both high thermal mass and AAC blocks have their own strengths that are leveraged by builders to design structures more capable of handling different climatic conditions while minimizing overall energy consumption.
Smart windows and films boast next generation means of thermal insulation. The so-called electrochromic windows can change tint depending on the amount of sunlight hitting them, while reducing heat gain and glare. Besides, applying Low-E films on already installed windows will improve their insulating features and result in greater energy efficiency.
Finally, ventilated facades can offer an increase in insulation, including double-skin facades. These systems comprise a ventilated cavity between two leaves of the building envelope, which reduces heat transfer and enhances energy efficiency.
These innovative solutions, if implemented, could greatly enhance the energy efficiency in buildings by reducing energy consumption and ensuring a better environment.
Cost Considerations: The building envelope insulation is essential for achieving cost efficiency, as it greatly diminishes energy use associated with heating and cooling. An effectively insulated envelope decreases heat loss during colder months and mitigates heat gain in warmer periods, thereby ensuring a more consistent indoor temperature. This results in decreased reliance on HVAC systems, which contributes to reduced energy expenses.
Ultimately, the initial expenditure on superior insulation is recouped through diminished operational costs over time. Also, a better-performing envelope can reduce the need for large or high-capacity heating and cooling systems, which reduces costs both up front and over the long term. This saves money not only for the residents but also in terms of achieving environmental sustainability.
Conclusion and Future Scope
Future trends in building envelope insulation are to attain high energy efficiency, sustainability, and improved performance. The major trends are developing phase change materials that, through the change of state from liquid to solid and vice-versa, absorb and release thermal energy, thus regulating indoor temperature for a longer period. Other innovative methods involve the use of raw natural elements like straw, hemp, and sheep’s wool, which, apart from being sustainable, provide very good thermal insulation.
Advances in the field of nanotechnology also hold out a few prospects, such as nanoparticle-based insulation. It appears to reach high values of R at a much lower cost. Aerogels and vacuum insulation panels are also being refined for higher values of thermal performance by using minimal thickness.
The push toward zero carbon-ready buildings is in the process, driving stricter energy performance standards globally. It is very important to insulate the building envelope for economizing energy. Any of this insulation material is to be selected depending upon project requirements and the material availability since each of them has its own limitations. If the scope for applying an insulating layer is less, we can modify the building envelope materials by choosing the materials with suitable properties and analysing their thermal performance. Our aim should be to have eco-friendly construction where the systems are cost-effective and energy efficient.
Dipanwita Samaddar, a Subject Matter Expert (HVAC), is connected to Zuru Tech India Pvt. Ltd.
